Vertical Take-off and Landing Drone (VTOL)
SP Drone Revolutionizes Delivery with VTOL Drone

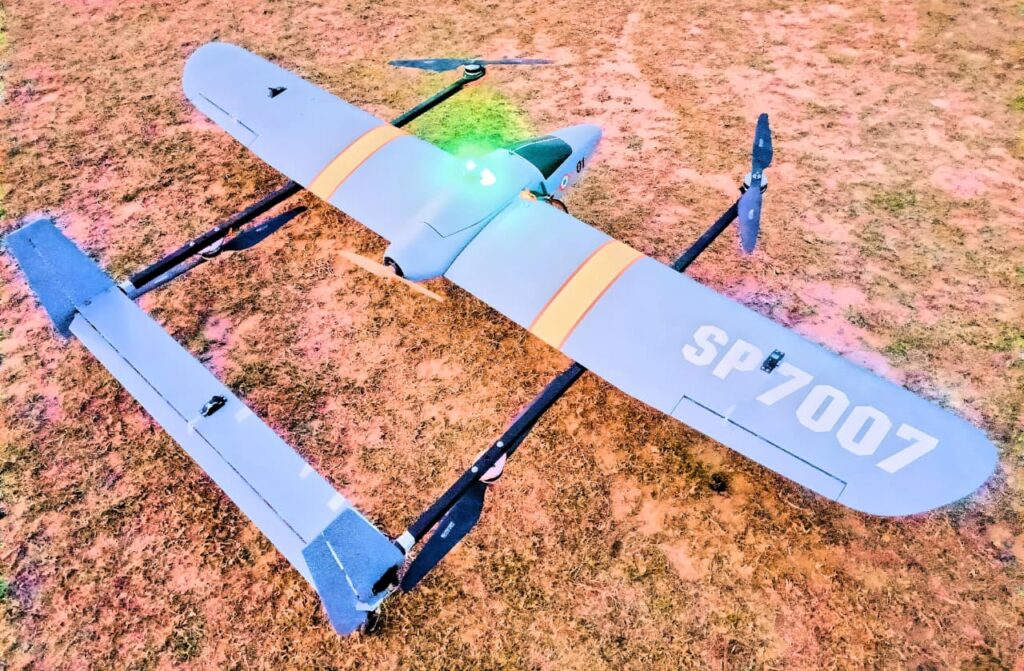

SP7007 is an advanced vertical take-off and landing (VTOL) drone developed by SP Drone in India.
This aircraft is specifically engineered for long-range delivery and mapping missions, featuring a 2235mm wingspan and a durable balsa wood frame. It utilizes a “4+1” motor configuration that allows it to lift off like a multicopter before transitioning into efficient fixed-wing flight. The system is powered by the PX4 professional autopilot and can be managed through QGroundControl software to execute autonomous tasks.
By combining high payload capacity with the ability to operate in remote areas without runways, the SP7007 aims to modernize Indian logistics and emergency services.
Technical Specifications

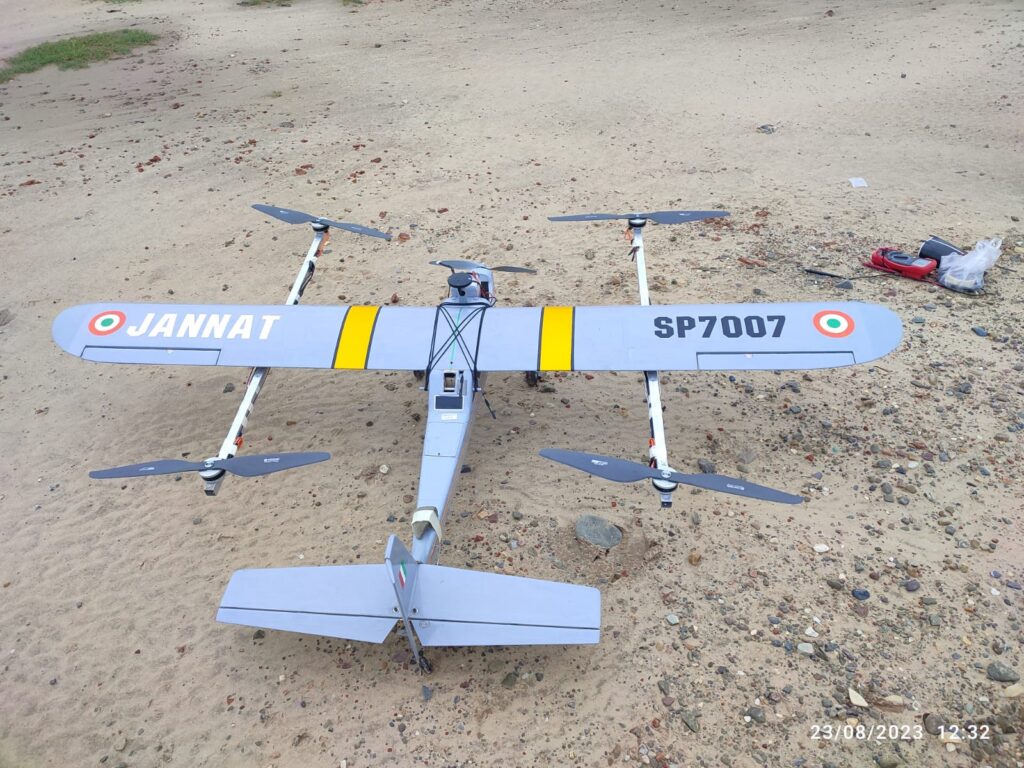

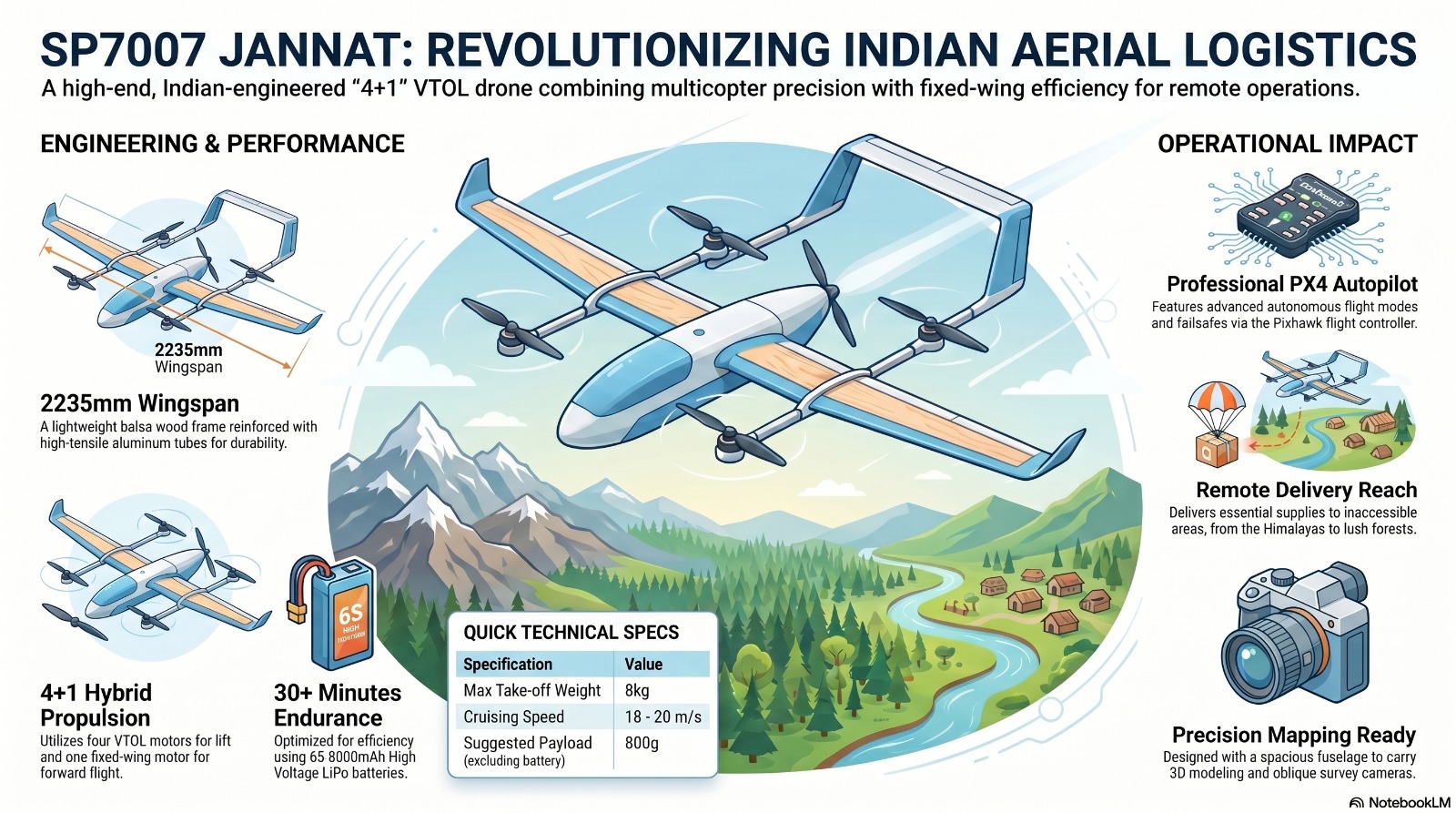

The Jannat SP7007 is a high-performance Vertical Take-off and Landing (VTOL) drone designed for long-range deliveries and mapping tasks. It features a space-efficient “4+1” motor design, which utilizes four motors for vertical lift and one motor for fast-speed forward fixed-wing flight.
Here are the key technical specifications for the SP7007:
General Physical Specifications
Wingspan: 2235mm

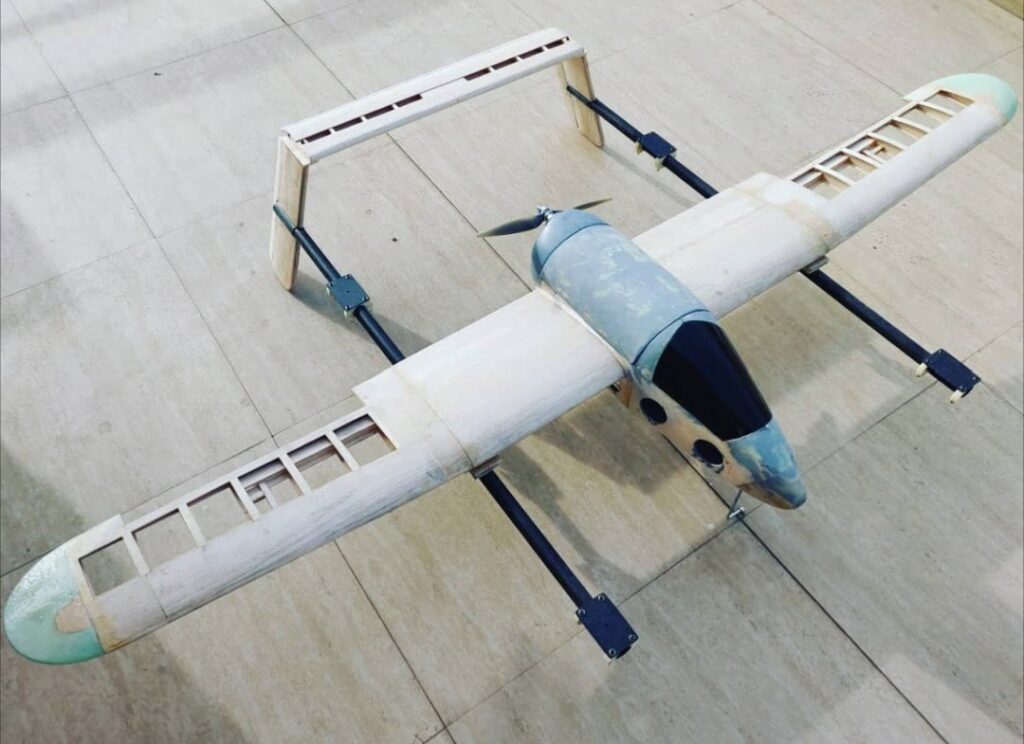

Materials: Built using Balsa wood, Aluminum-plastic Film, and PVC, and reinforced with high-tensile, low-weight aluminum tubes
Maximum Take-off Weight: 8kg
Suggested Max Payload: 800g (excluding battery)
Performance Metrics
Flight Endurance: 30+ minutes on a single charge.
Recommended Cruising Speed: 18-20 m/s
Stall Speed: 12-14 m/s
Suggested Take-off Altitude: 0 to 500 meters
Propulsion and Power
VTOL Lift Motors: Four T-Motor MN501S KV240 motors paired with Alpha 60A V2 Electronic Speed Controllers (ESCs) and 22×6.6 inch carbon fiber propellers.
Fixed-Wing Forward Motor: One Turnigy G60 KV400 motor paired with a Castle 75A Phoenix Edge ESC and a 14-inch glass fiber nylon propeller.
Battery: Powered by a Tattu 6S 8000mAh High Voltage LiPo Battery (22.2V)
Avionics and Control Systems
Flight Controller / Autopilot: Pixhawk Cube Black Standard Set combined with a Here 2 GNSS module for advanced navigation and positioning.
Radio Control: FrSky Taranis X9D Plus transmitter combined with a FrSky X8R receiver.
Telemetry: RFD900+ Telemetry Modem for long-range data communication.
Actuators/Servos: Four Futaba S3001 standard analog servos.
Sensors: Includes a digital airspeed sensor connected to a pitot tube to guarantee lift and detect stalls during fixed-wing flight.
Some of the key features of the SP7007 include
Long-range flight
The SP7007 can fly up to many kilometers on a single charge.
Heavy payload capacity
The drone can carry up good payload amount of cargo.
Vertical take-off and landing
The SP7007 does not require a runway, making it ideal for use in remote areas.
Advanced autopilot system
The drone's autopilot system ensures safe and efficient flight, even in challenging conditions.
Reaching remote corners of India
From the snow-capped Himalayas to the lush Andaman forests, the SP7007 delivers essential supplies where roads don't reach. Healthcare, education, and emergency services – no area is beyond its reach.
Boosting local businesses:
Farmers can get their produce to markets faster, small businesses can expand their reach, and entrepreneurs can innovate like never before. The SP7007 fuels the dreams of aatmanirbhar Bharat.
Connecting our diverse nation
From bustling cities to serene villages, the SP7007 bridges the gap, weaving a stronger, more connected India. Every delivery is a thread in the tapestry of national unity.
Powered by Indian ingenuity
Forget foreign imports! The SP7007 is a testament to Indian expertise, designed and programmed by our own talented engineers. This is a giant leap for Indian technology, setting new standards for the world.
With its long-range, heavy payload capacity, and vertical take-off and landing capabilities, the SP7007 can be used to deliver goods to remote areas, to provide emergency services, and to support a variety of other applications.
The future is here: Together, let’s take India to new heights, one sky-high delivery at a time!
We are confident that the SP7007 will be a game-changer for the delivery industry.
We are committed to providing our customers with the best possible drones and services, and we are excited to see how the SP7007 will be used to improve the lives of people around the world.
