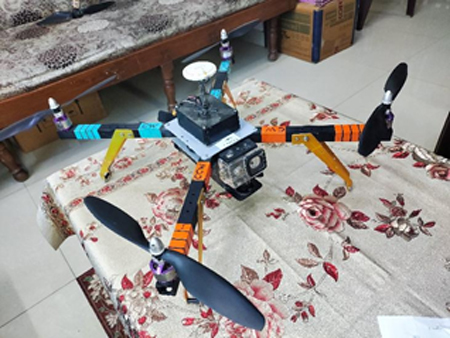

Multirotor Framework
Model Specifications
General Physical Specs
Length
23 Inch (584mm)
Breadth
23 Inch (584mm)
Takeoff & Landing
Vertically (VTOL)
Battery Compatibility
2200mAh to 6000mAh LiPo
Motor & Propulsion Specs
KV Rating (RPM)
750 KV
Power Load
12 Amps
ESC Configuration
4-In-One (Integrated BEC 5V)
Standard Propeller
10 x 4.5 Carbon
Compatible Propellers
9x6 to 12x6
Motor Rotation layout
2 CW & 2 CCW Brushless
Avionics & Autopilot Systems
Controller Support
Tri-Rotor to Hexacopter
Gimbal Integration
Standard Servo / Brushless
Flight Modes
GPS / Altitude Hold / Manual
Safety Features
Fail Safe / Return To Launch (RTL)
Battery Management
Low-Voltage RTL Trigger
RC Telemetry Link
Transmitter Channels
6 Channels (2.4GHz)
Operational Range
1 KM (Clear line of sight)
Transmitter Power Load
5V to 7V
Receiver Channels
6 Channels (Dual Antenna)
Receiver Power Input
4.5V to 6V
